Cylinders
Cylinder Applications
Our lineup of BVA Hydraulics cylinders are built with durable alloy steel, high-performance seals, and chrome-plated piston rods to give you dependable power up to 10,000 psi. From low-profile to lock-nut and hollow-hole designs, we offer a range of cylinders to help you tackle every job with confidence and ease.

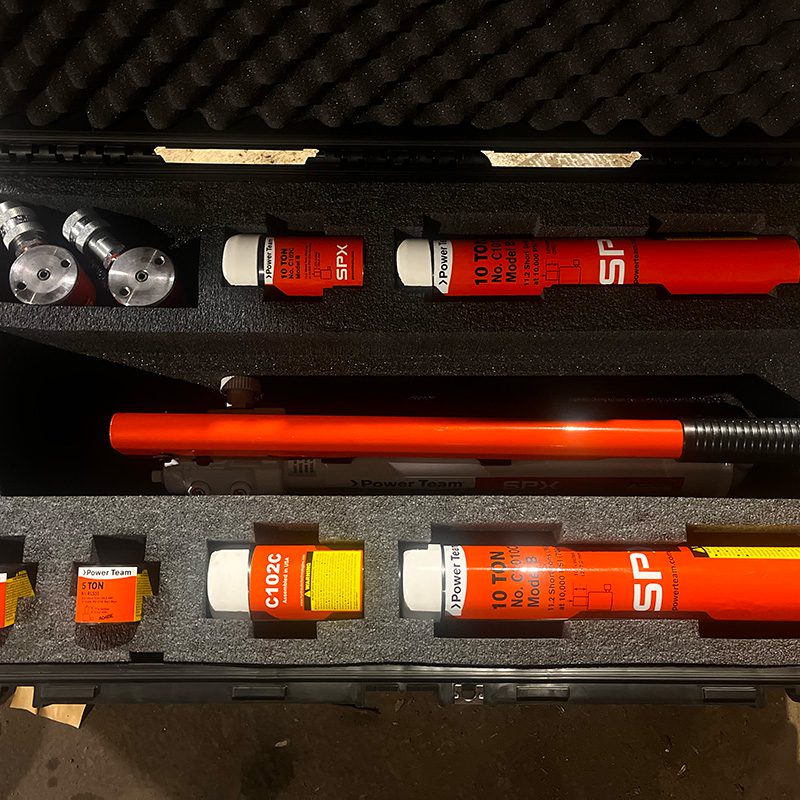

Portable Cylinder Kit
Looking for a hydraulic cylinder kit that is portable, versatile, and easy to transport? Look no further than American Bolting’s portable hydraulic cylinder kit.
American Bolting’s portable hydraulic cylinder kit comes in a durable rolling case that is designed to hold a variety of cylinder sizes, making it the perfect solution for on-the-go applications. Whether you need to work on heavy equipment, machinery, or vehicles in the field, this kit has everything you need to get the job done.

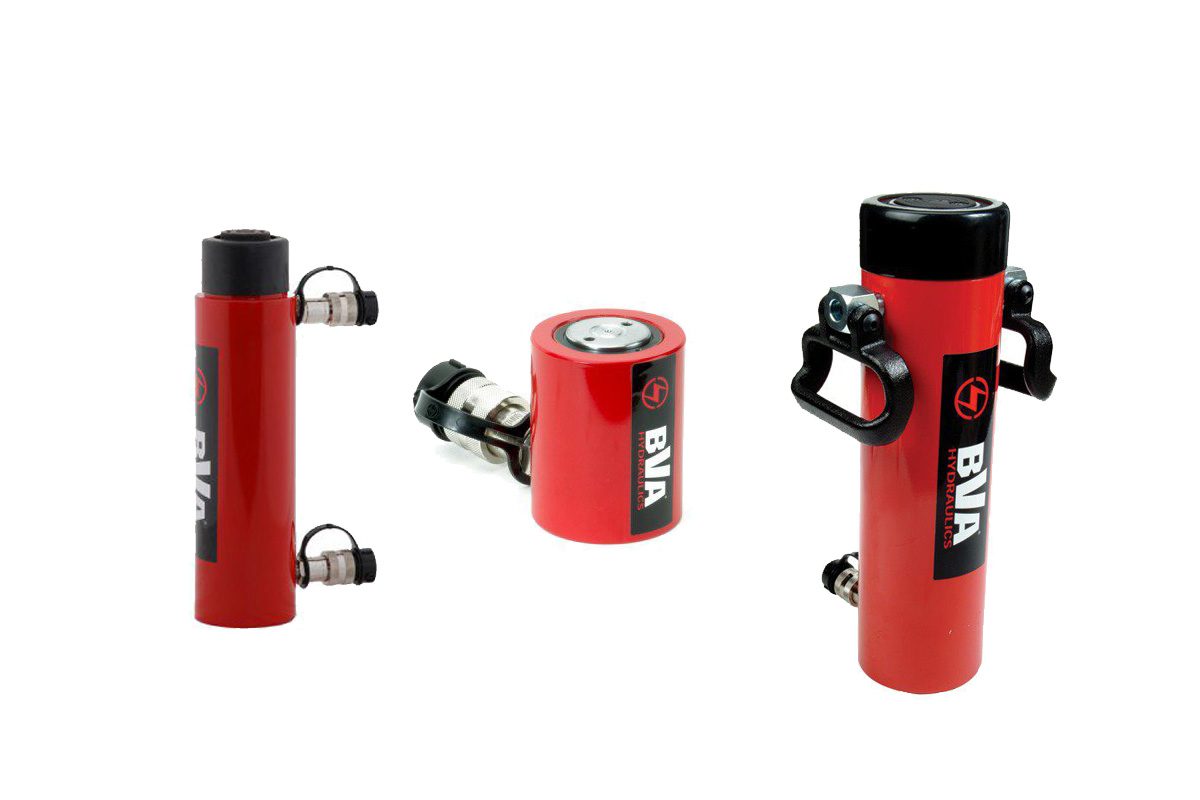

Hydraulic Cylinders
BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufacturing in solid one piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life. Our standard hard chrome plated piston rod protects against corrosion & damage; one piece aluminum alloy bearing protects against cylinder wall damage. Collar threads and base mounting holes are for fixuring. All BVA cylinders come equipped with CH38F high flow coupler with dust cap for better protection.
Cylinder Types
BVA is a leading manufacturer of hydraulic cylinders, known for their durability, precision, and reliability.
BVA hydraulic cylinders are designed to provide exceptional performance in even the toughest conditions. Whether you are lifting heavy loads, pushing or pulling equipment, or working in harsh environments, BVA cylinders can handle the job.

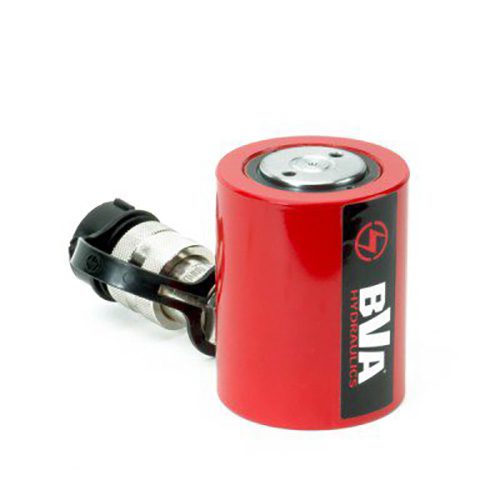

Single Acting Cylinders
- Collar threads and base mounting holes for fixturing
- Hard chrome plated piston rod protects against corrosion and damage
- Polyurethane U-Cup seals provide a sure seal and long life
- Solid one piece alloy steel body
- One piece aluminum alloy bearing protects against cylinder wall damage

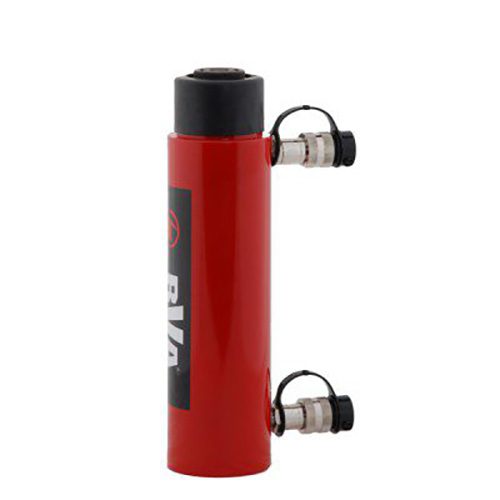

Double Acting Cylinders
- Rod wiper seals out dirt and contamination
- Ideal for pushing and pulling
- Maximum working pressure 10,000 psi/700 bar
- Threaded cylinders, removable saddle, thicker cylinder walls
- Retract under hydraulic power for faster operation

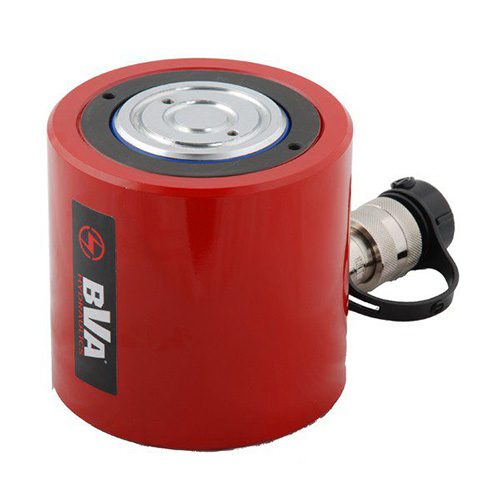

Low Profile Cylinders
Low clearance lifting
Compact design for use in confined spaces. Specially designed return spring provides quick retraction and extends the life of the spring.

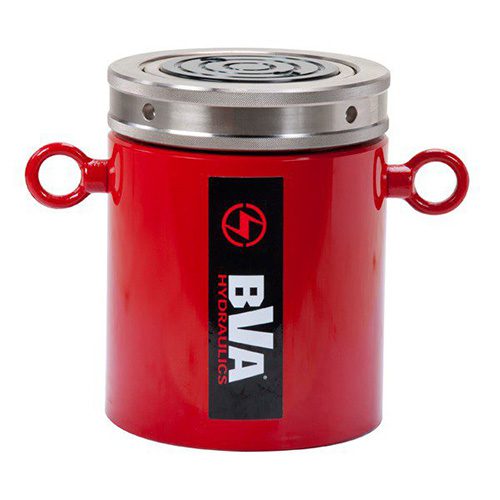

Lock Nut Cylinders
Single acting cylinder with mechanical safety lock nut. Designed to support loads without hydraulic pressure.

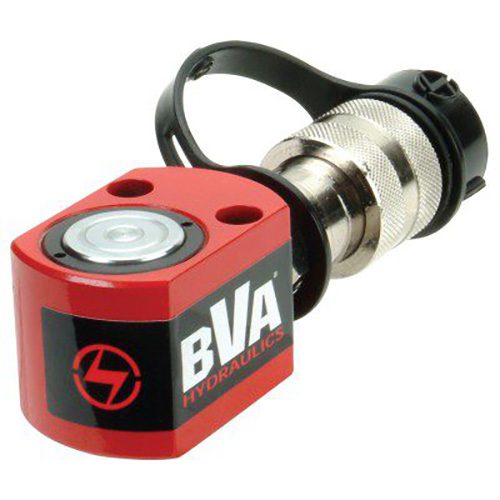

Flat Body Cylinder
Extremely low collapsed height for applications with minimal clearance at the lift point.

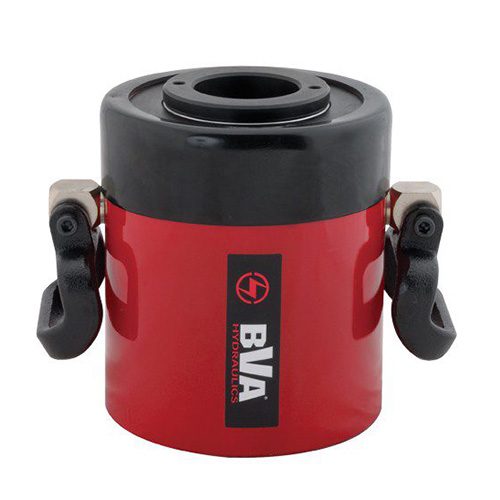

Hollow Hole Cylinder
Ideal for pushing and pulling applications
